Hydraulic Rear Bump Stop Kit

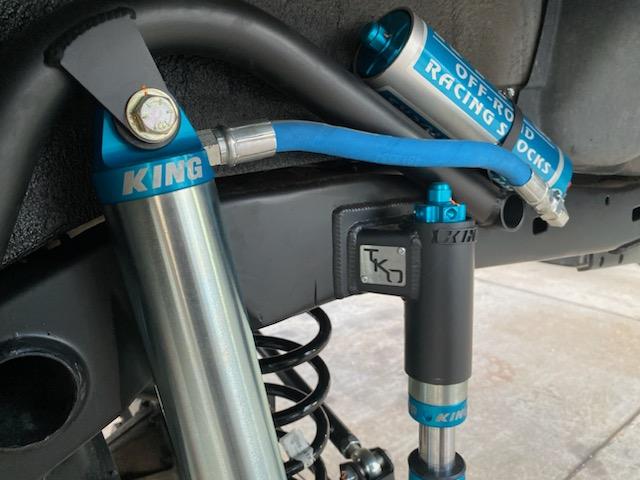

The TKO Toyota Hydraulic Bump Stop Kit provides a plug and play bump stop system in the rear of your vehicle. This kit will allow you to use the full potential of your vehicle with many different suspension setups.

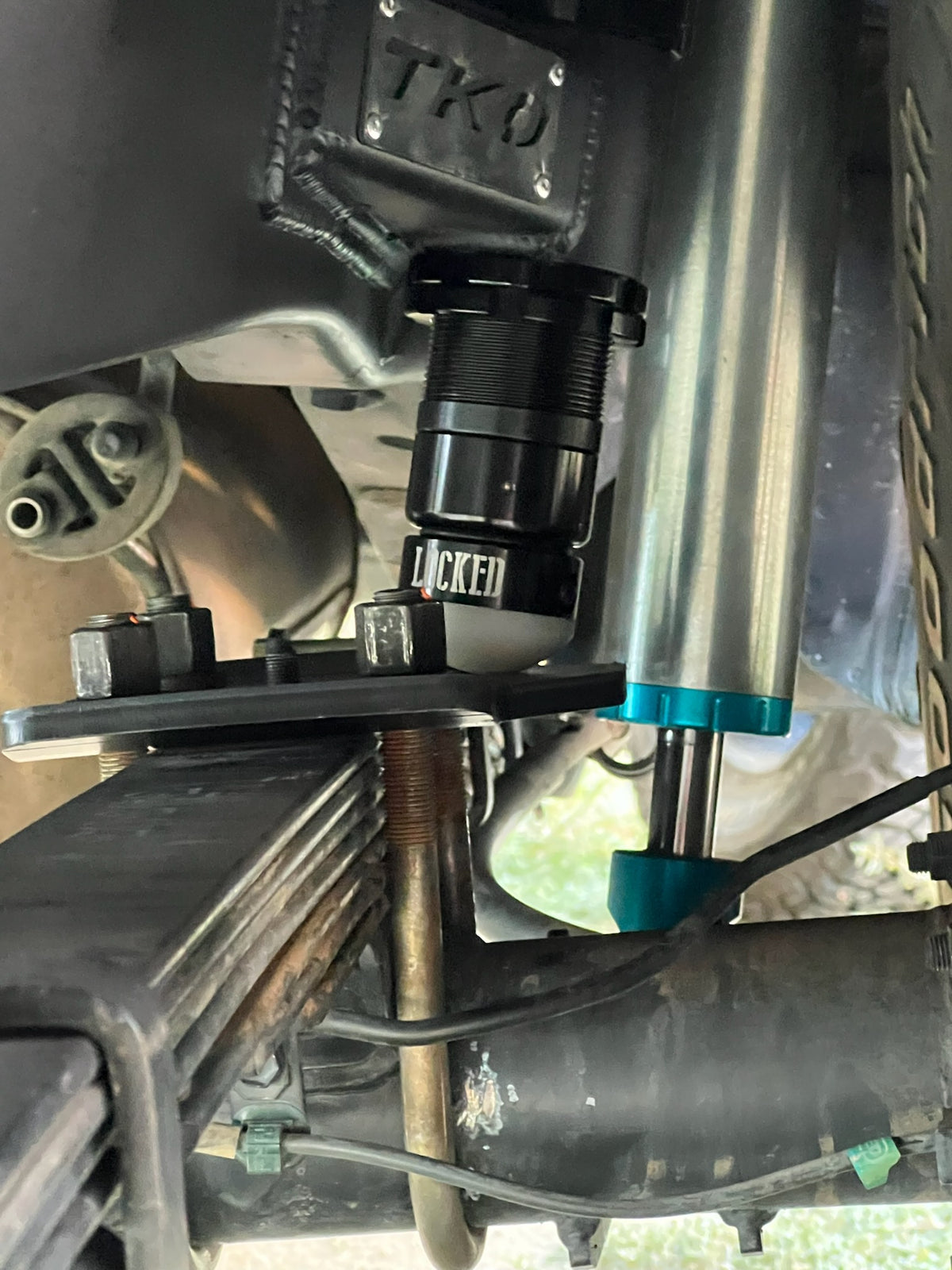

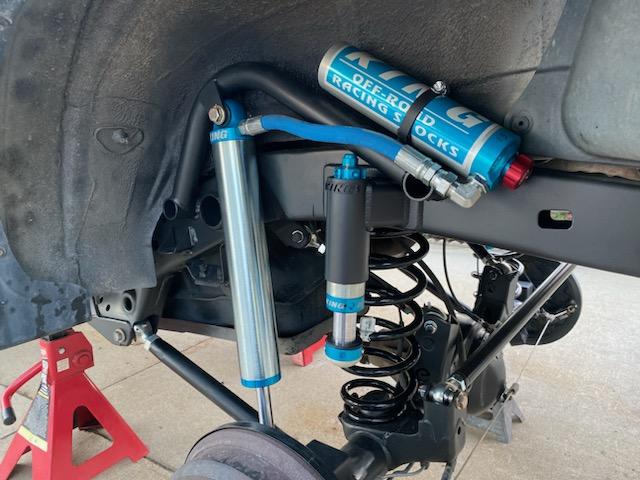

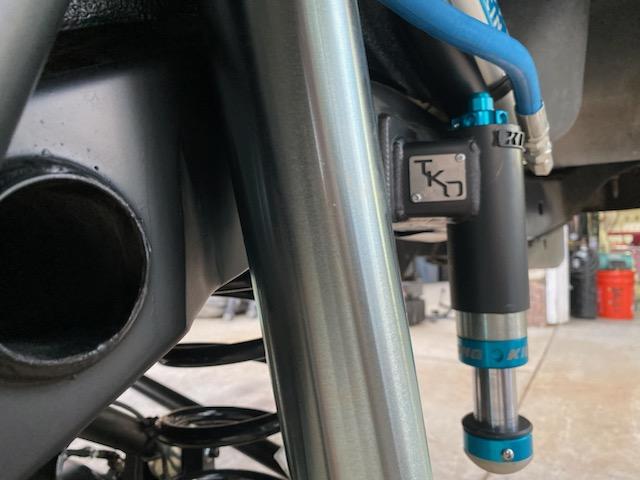

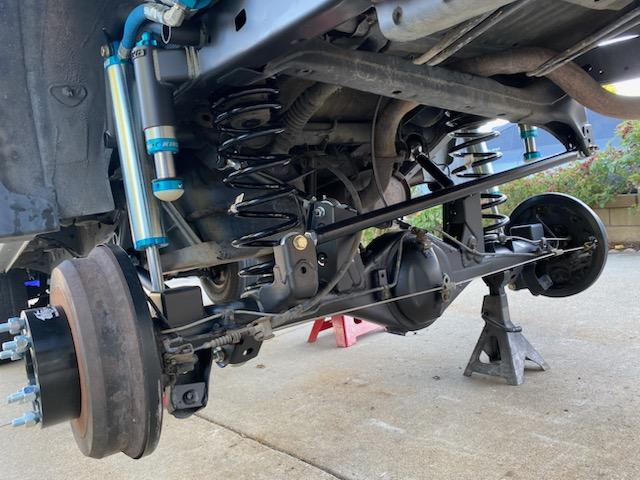

This Hydraulic Rear Bump Stop Kit is intended for high performance/high speed builds but also works great for rock crawling or over landing applications. This kit has been tested on multiple rigs in the harshest terrain of Death Valley to the rocky trails of the San Bernardino National Forest. In all tests it provided a soft cushion for all hard bottom outs. This kit is fully weld on and designed to work on specific Toyota models or universal applications.

Includes:

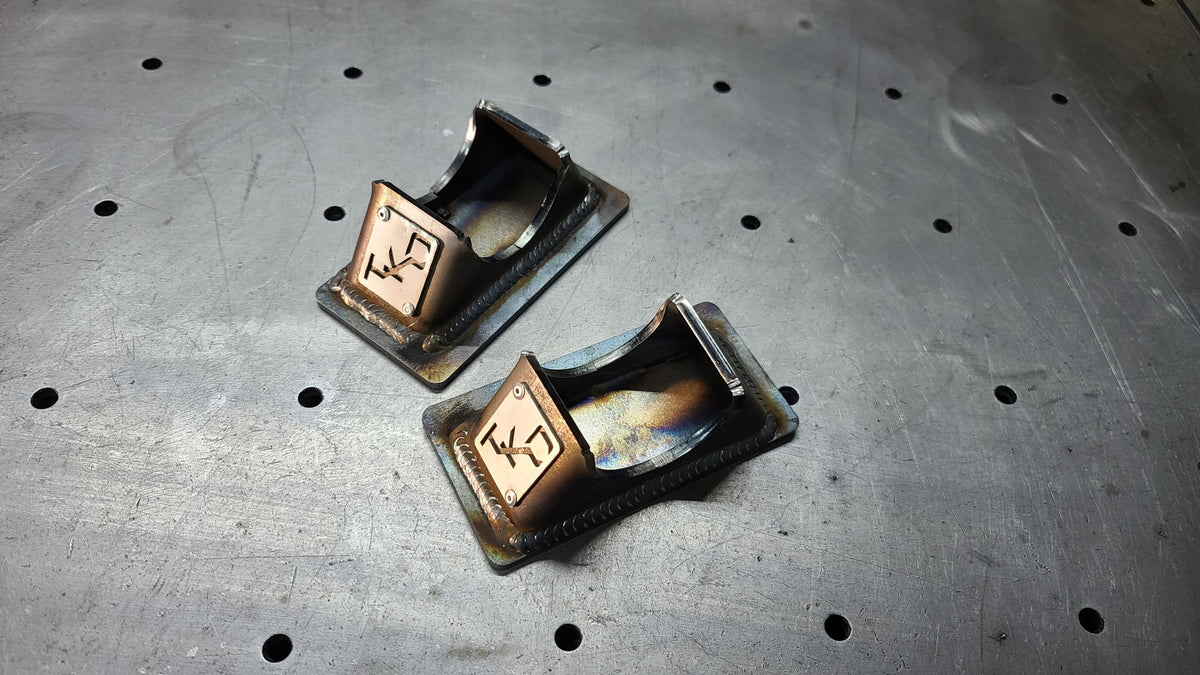

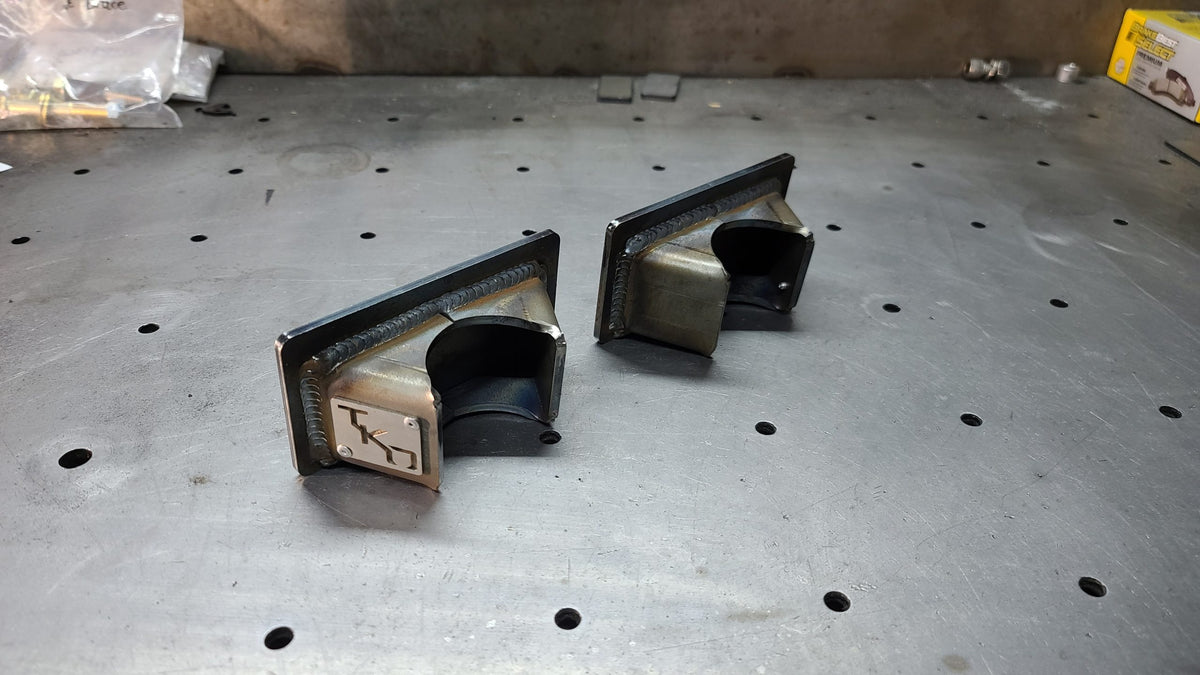

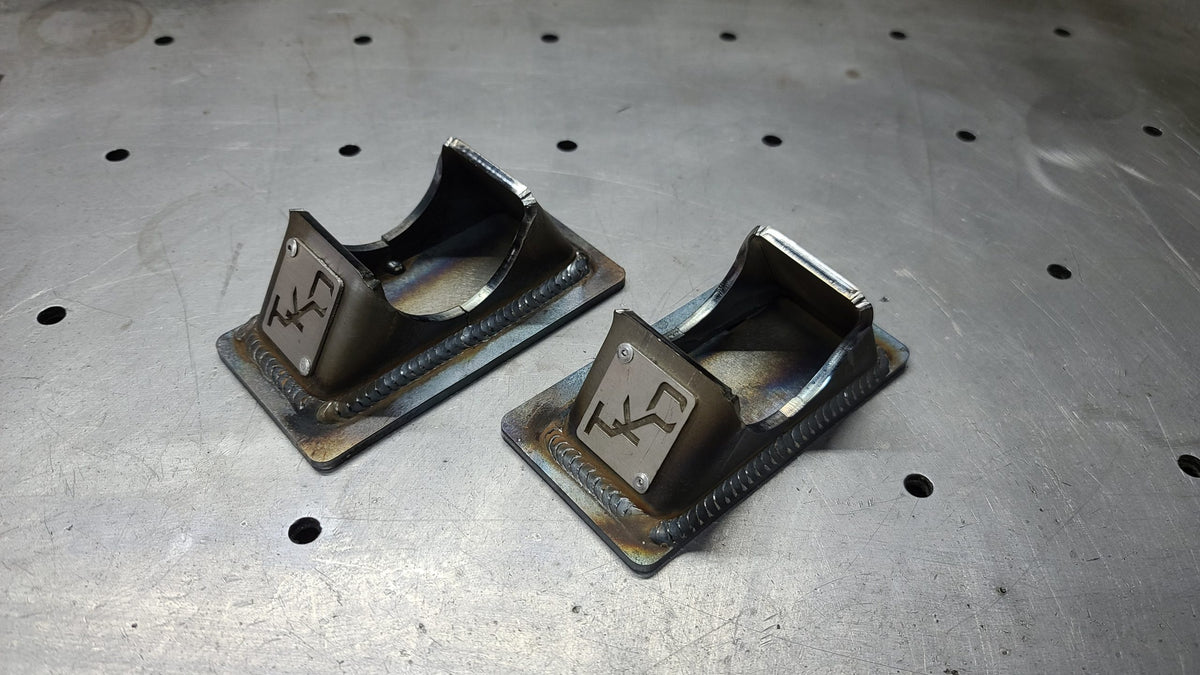

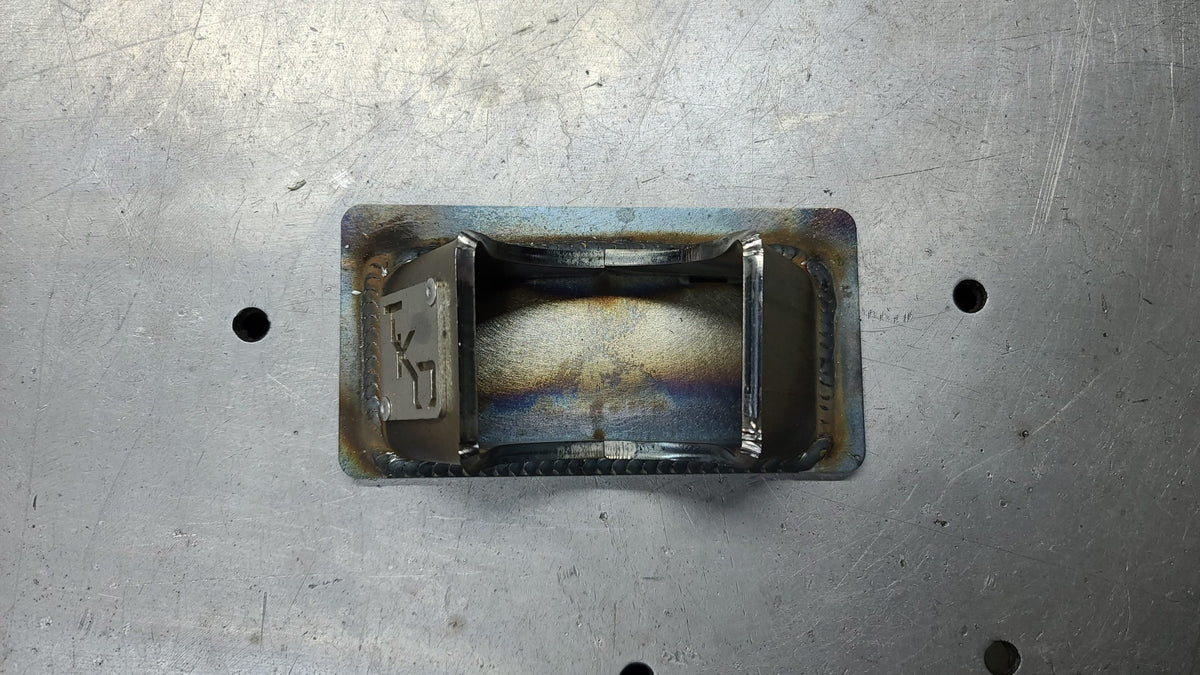

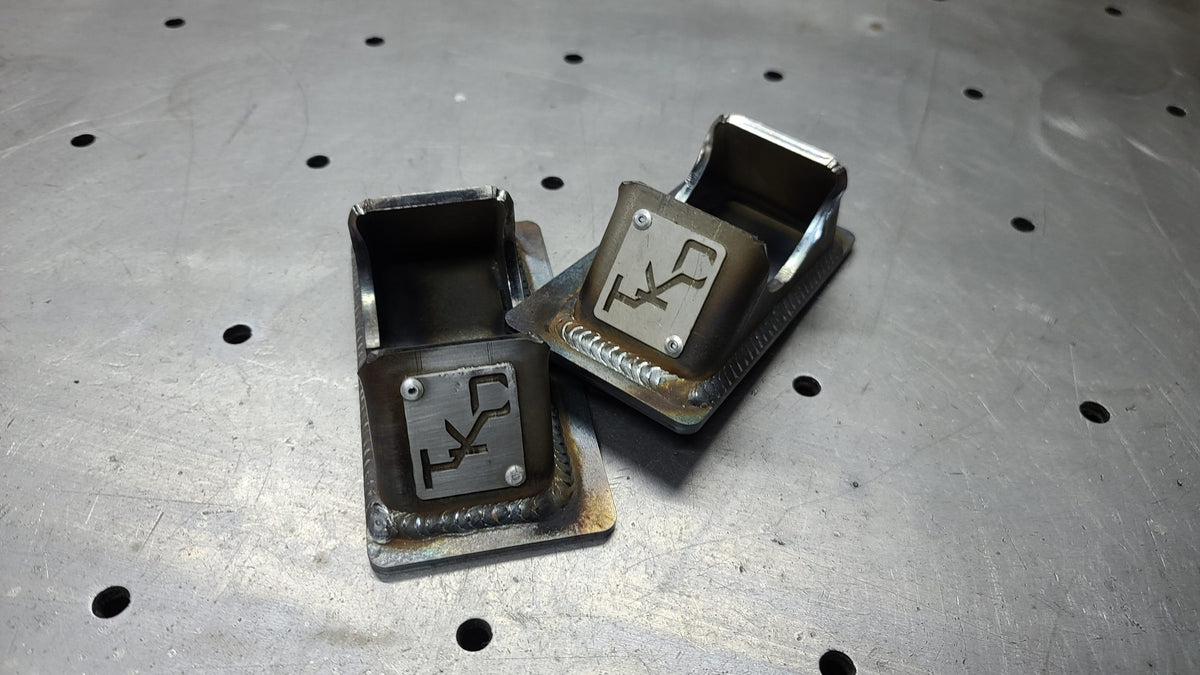

• Two frame bump stop perch plates (fully welded without bump cans)
• Two fully welded axle strike pads (Tacoma models include a bump plate, universal applications have multiple rise options)
• Two stainless steel TKO badges
• Nine 1/8" aluminum rivets
• Frame caps

Vehicles:

• 3rd Gen 4Runner
• 4th Gen 4Runner
• 5th Gen 4Runner
• FJ Cruiser
• GX 460
• GX 470
• 1st Gen Tacoma
• 2nd Gen Tacoma
• 3rd Gen Tacoma
• Custom Universal Applications

Requires:

• Minor grinding/cutting to remove the factory bump stop perches
• Welding to the frame and axle housing
• Painting

About:

This kit has been designed from the bottom up to fit a multitude of vehicles as well as universal applications. This kit allows fitment of bigger shocks, multiple bump stop brands, is designed to work with the Solo Motorsports Outboard Shock Kits, and requires less frame cleaning/welding than other options on the market. Running the TKO rear hydraulic bump stop kit on an off-road vehicle offers several advantages, especially in terms of suspension performance and durability:

1. Improved Bottom-Out Control: Hydraulic bump stops provide a smoother and more controlled compression when the suspension reaches its travel limit, reducing the harsh impact of bottoming out. This can prevent damage to the vehicle’s suspension and frame, especially when hitting large obstacles or landing hard.
2. Better Suspension Control: Compared to traditional rubber bump stops, hydraulic bump stops offer more precise damping. They can be tuned for different spring rates and compression characteristics, giving you more control over how the suspension behaves during off-road conditions.
3. Increased Vehicle Stability: By preventing the suspension from bottoming out abruptly, hydraulic bump stops help maintain better control of the vehicle, especially when dealing with heavy impacts like landing from jumps, driving through deep ruts, hitting large rocks, or carrying extra weight.
4. Tuning Flexibility: Hydraulic bump stops can be adjusted for different forces and compression characteristics. This means they can be tailored to specific driving conditions or preferences, such as softer settings for rock crawling or firmer settings for high-speed desert running.
5. Increased Safety: By reducing the potential for damage to suspension components and the vehicle's chassis during extreme impacts, hydraulic bump stops can contribute to overall vehicle safety, preventing issues like frame bending or shock failures during rough off-road use.

Notes:

• 1.5” spacers or a -15mm or more offset wheel is required to clear the bump stops
• The bump stop kit removes the factory bump perch
• This kit was designed around a 2"x2” Threaded style bump stop
• Will work with any 2"x2" bump stop but may require minor honing
• Kit is compatible with Solo Motorsports, Freel Good Perfomance, and Envision outboard shock kits.

Install should be performed by an experienced off-road shop with suspension and fabrication experience.
